TOOLSTRING EQUIPMENT

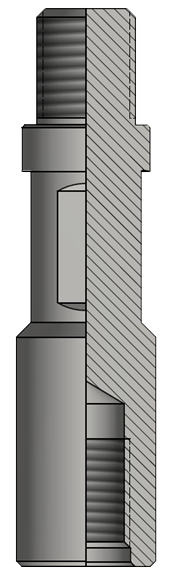

Sucker Rod Crossover

Used to cross over different size threads or tools string components.
Used to tools with larger or smaller threads to desired equipment.

Size0.75"1.00"1.25"1.50"1.75"
Upper Thread.50 UNC.625 UNC0.938-10 UN0.938-10 UN1.062-10 UN
Fishneck (")0.750"1.00"1.187"1.375"1.375"
Fishneck (mm)19.05mm25.4mm30.15mm34.93mm34.93mm
Over all Length (")6.00"6.00"6.00"6.00"6.00"
Over all Length (mm)152.4mm152.4mm152.4mm152.4mm152.4mm
Maximum OD (")0.75"1.00"1.25"1.50"1.75"
Maximum OD (mm)19.05mm25.4mm31.75mm38.1mm44.45mm
Size2.125"2.375"2.875"3.50"4.50"
Upper Thread1.062-10 UN1.062-10 UN1.062-10 UN1.062-10 UN1.562-10 UN
Fishneck (")1.75"2.31"2.31"3.125"3.125"
Fishneck (mm)44.45mm58.67mm58.67mm69.38mm79.38mm
Over all Length (")6.00"7.50"7.50"7.50"7.50"
Over all Length (mm)152.4mm190.5mm190.5mm190.5mm190.5mm
Maximum OD (")2.1252.375"2.875"3.50"4.5
Maximum OD (mm)53.98mm60.3mm73mm88.9mm114.3mm

*Alternate thread configurations and sizes available upon request

PLEASE STATE PART DESCRIPTION AND SIZE WHEN ORDERING
