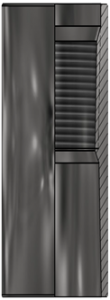

The Brio-Tech Pressure Controls Wireline Re-Entry Guide is utilized on the bottom of the tubing string to allow for re-entry of wireline tool strings, or E-line logging strings bak into the tubing string.
Applications:
The Brio-Tech Pressure Controls Wireline Re-Entry Guide is benificial in deiviated well bores, or in any
instance where bottom the tubing of the tubing may not be concentric to the wellbore.
| Size | 1.660" | 2.062" | 2.375" |
| Upper Thread Conn. | 1.660 NUE Box | 1.900 EUE Box | 2 3/8" EUE Box |
| Lower Thread Conn. | n/a | n/a | n/a |
| Maximum OD (") | 2.20" | 2.50" | 3.062" |
| Maximum OD (mm) | 55.88 mm | 63.50 mm | 77.77 mm |
| Minimum ID (") | 1.38" | 1.61" | 1.99"" |
| Minimum ID (mm) | 35.05 mm | 40.89 mm | 50.565 mm |
| Size | 2 7/8" | 3 1/2" | 4 1/2" |
| Upper Thread Conn. | 2 7/8" EUE Box | 3 1/2" EUE Box | 4 1/2" EUE Box |
| Lower Thread Conn. | n/a | n/a | n/a |
| Maximum OD (") | 3.668" | 4.50" | 5.563" |
| Maximum OD (mm) | 93.17 mm | 114.30mm | 141.30mm |
| Minimum ID (") | 2.441" | 2.99" | 3.958" |
| Minimum ID (mm) | 62.00 mm | 75.94mm | 100.53mm |
PLEASE STATE PART DESCRIPTION AND SIZE WHEN ORDERING
